Description

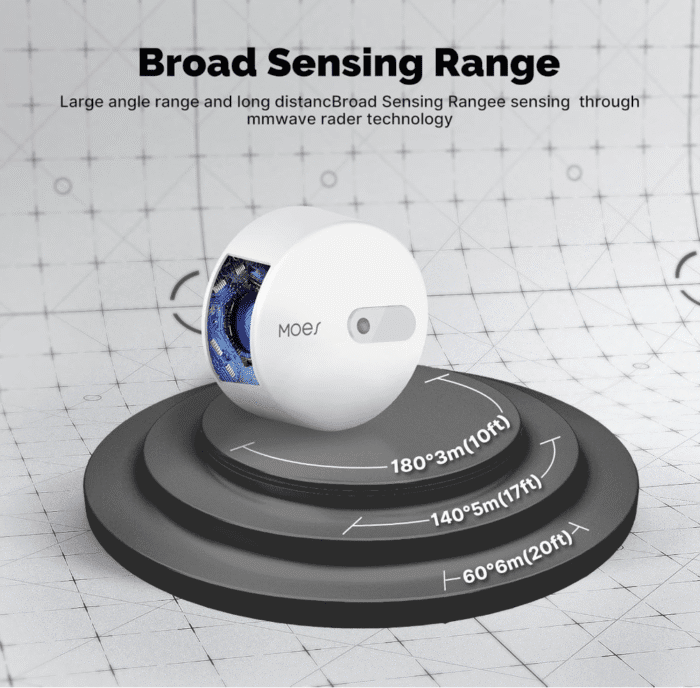

This advanced mmWave sensor uses advanced 24GHz radar technology to detect not only coarse movements but also subtle presence. As a result, the lighting in a living room, bedroom, or office will never switch off unnecessarily again while you are quietly reading or working.

Benefits of smart automation

Traditional PIR sensors only react to movement, which often leads to frustration in rooms where you sit still for extended periods. This presence sensor solves that problem and also measures light intensity in lux, allowing you to base your automations on the current ambient brightness.

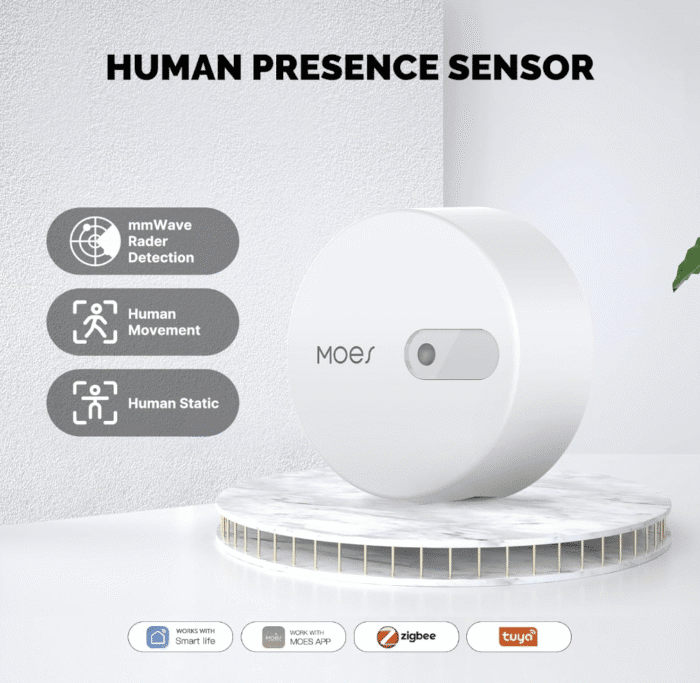

• Accurate presence detection based on mmWave radar
• Measures presence, motion, and ambient light
• Prevents lighting from turning off when stationary

Simple integration

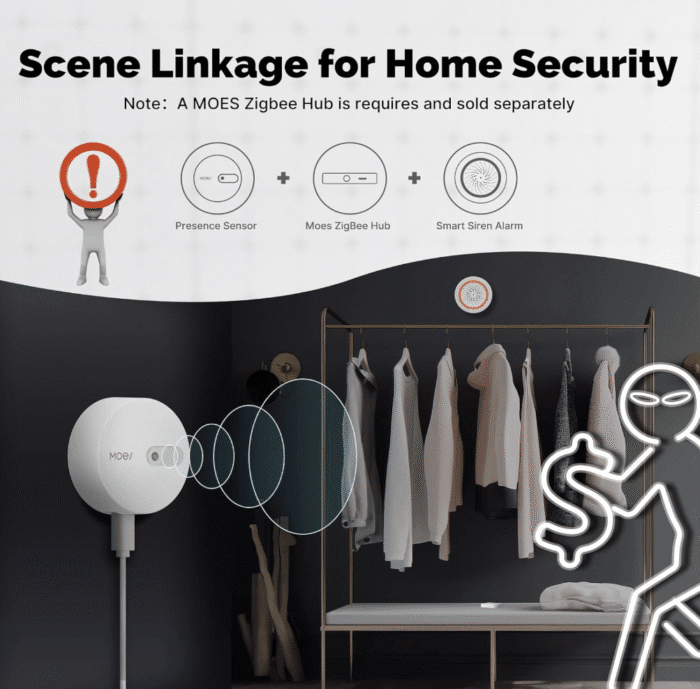

The device operates based on the Zigbee 3.0 protocol and can therefore be easily paired with a compatible Zigbee gateway and Home Assistant. Please note that a Zigbee hub is required for operation and that this sensor is powered via USB.

Technical specifications

Brand: MOES
Model: ES1ZZ
Protocol: Zigbee 3.0

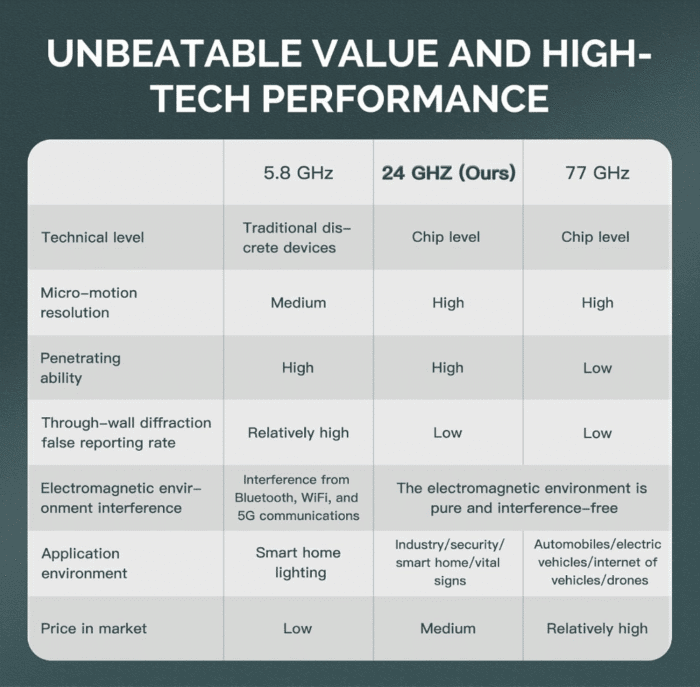

Technology: 24GHz mmWave radar
Power supply: 5V USB
Power consumption: ±0.5W
Light measurement: 0 – 10,000 lux
Operating temperature: -10°C to +40°C
Humidity in range: 0% – 95%
