Description

The ultimate Linux Smart Home Hub for Zigbee, Thread & Matter

The SMLIGHT SMHUB Premium is a powerful, fully locally operating Smart Home Hub specifically developed for demanding Home Assistant users, installers, and smart home enthusiasts. Thanks to the combination of the latest Texas Instruments CC2674P10– and Silicon Labs EFR32MG24-radio chips, this Premium version offers maximum performance for both large Zigbee networks and Thread/Matter environments.

Unlike traditional gateways, the SMHUB runs on a full-fledged Linux operating system. This allows popular applications such as Zigbee2MQTT, Node-RED, Mosquito MQTT, Matterbridge, WireGuard and Z-Wave JS are executed directly on the hub. As a result, a separate Raspberry Pi or server is often no longer necessary.

Why choose the Premium version?

The Premium version is equipped with the latest generation of radio modules:

• Texas Instruments CC2674P10 – powerful Zigbee radio with excellent coverage and support for very large Zigbee networks.
• Silicon Labs EFR32MG24 – modern Thread/Matter radio with extra memory for optimal future-proofing.
• Both radios can be used simultaneously without interfering with each other.

Key benefits

• Fully local operation – no cloud necessary.
• Support for Zigbee, Thread, Matter, Wi-Fi, and Bluetooth.
• Runs Zigbee2MQTT, Matterbridge, Node-RED, and MQTT directly on the hub.
• Works perfectly with Home Assistant, OpenHAB, HomeSeer, and other MQTT platforms.
• Ethernet connection for maximum stability.
• 512 MB RAM and 8 GB eMMC storage, expandable via microSD.
• Web interface for easy management.
• SSH access for advanced users.
• Regular firmware and software updates via SMHUB-OS.

Modularly expandable

The SMHUB Premium grows with your installation. Thanks to the modular design, optional extensions are available such as:

• PoE module
• Z-Wave 800 module
• Microphone module
• Various extensions via UART, SPI, and I²C.

Ideal for

• Home Assistant
• Zigbee2MQTT
• Matter environments
• Thread Border Router
• Large Zigbee installations
• Professional Smart Home installations
• Installers and system integrators
• Users who want to automate fully locally

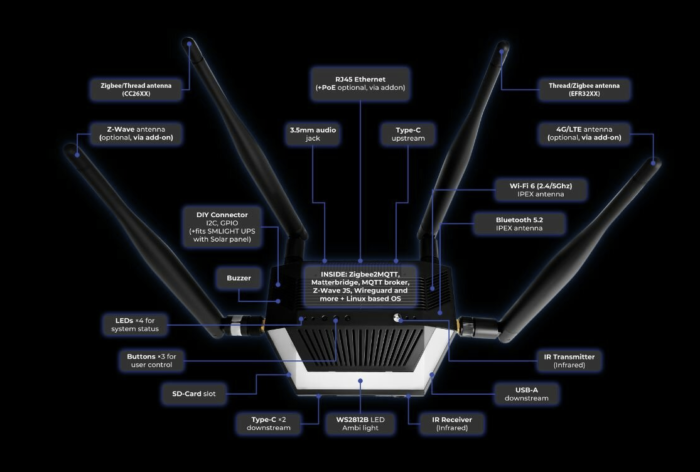

Technical specifications

• Processor: Dual-Core ARM/RISC-V
• Memory: 512 MB LPDDR4
• Storage: 8 GB eMMC + microSD
• Network: 10/100 Mbps Ethernet
• Radios:
  • Texas Instruments CC2674P10
  • Silicon Labs EFR32MG24
  • Wi-Fi 6
  • Bluetooth LE
• USB: 2× USB-C, 1× USB-A
• Operating system: SMHUB-OS (Linux)
• Power: USB-C (optional PoE)

Package contents

• SMLIGHT SMHUB Premium
• External antennas
• USB-C power cable
• Manual
